Technical Specifications
MODEL | STYLE | MAX OPENING | HEIGHT | WIDTH | WEIGHT | WORKING PRESSURE | WORKING FLOW | CUT POWER | CUT POWER | CUT POWER | EXCAVATOR |
UNIT | mm | mm | mm | kg | bar | lpm | kn | kn | kn | ton | |
ZSTE-10 | rotating | 1300 | 2610 | 1635 | 2347 | 280-320 | 150-180 | 893 | 1370 | 3084 | 28-30 |
Application Fields:

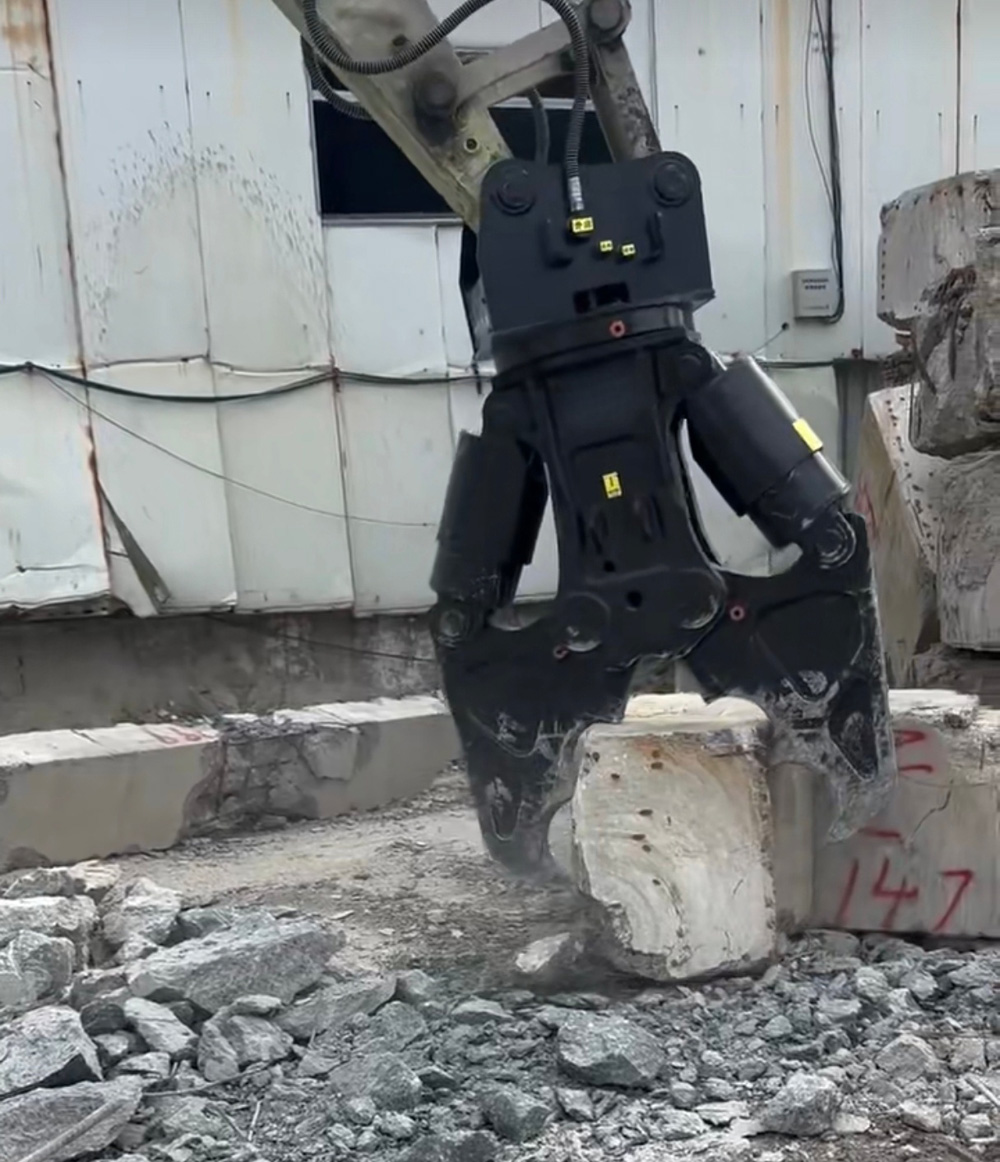

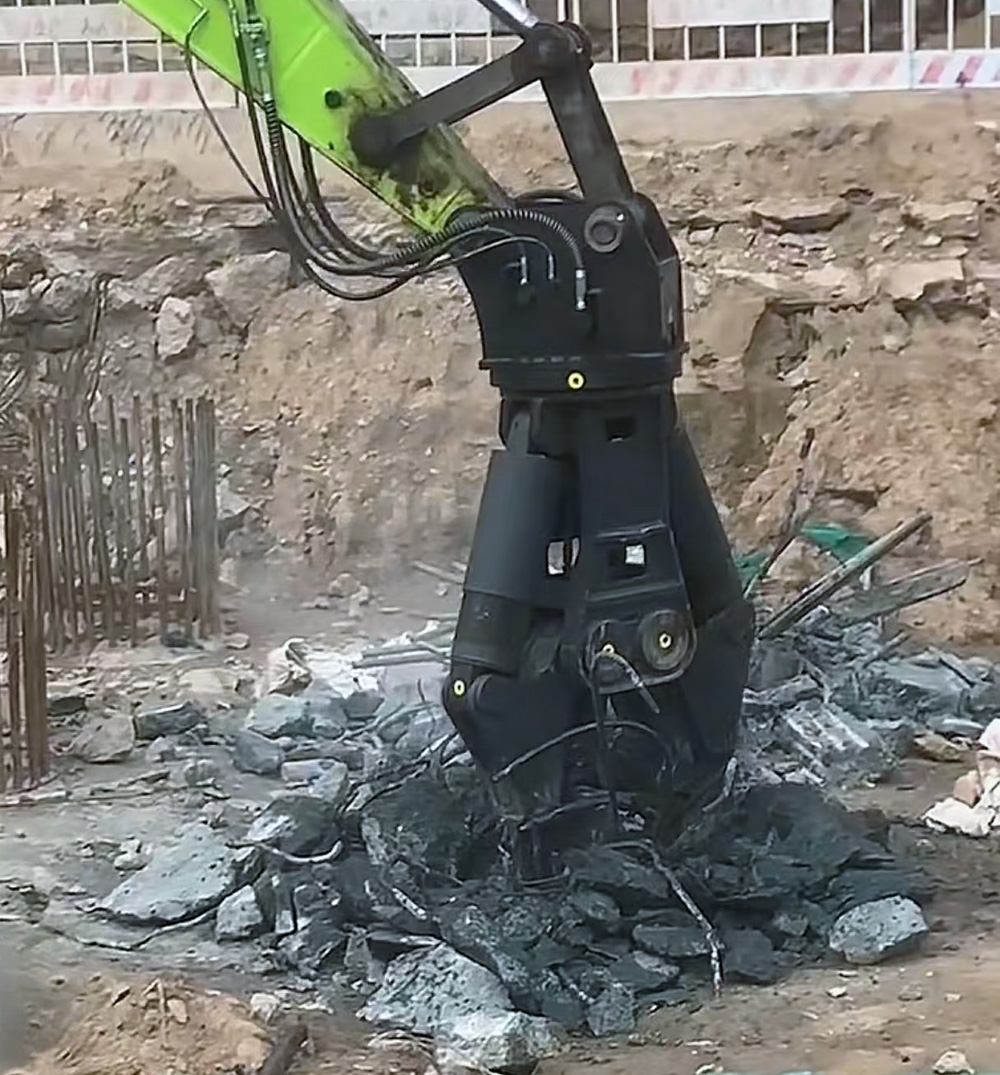

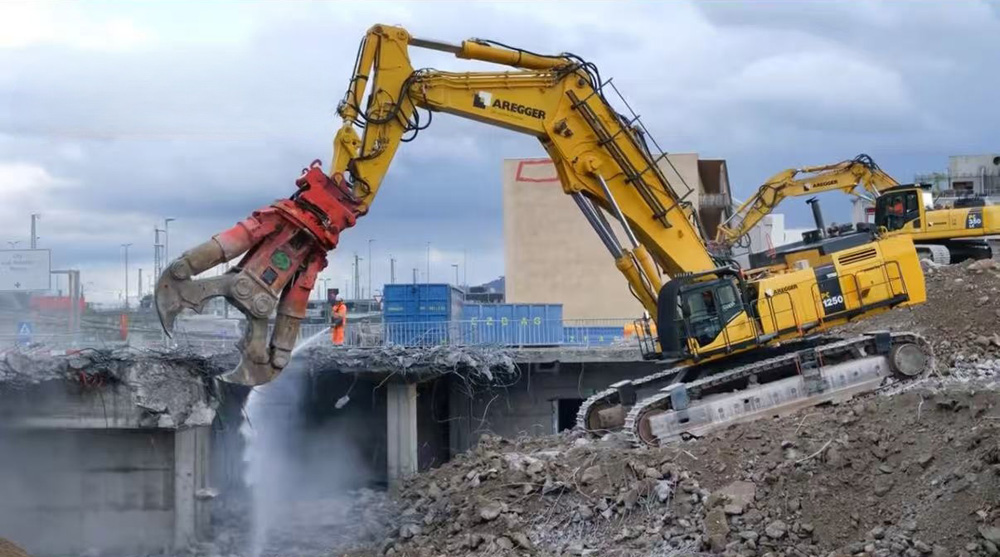

Suitable for all kinds of concrete and steel structure demolition operations
Product Features:
1. Twin-pin system enables a larger opening and higher power, even at maximum opening;
2. Special tooth profile, studied to remain sharpen despite wear,maximizes penetration;
3. Interchangeable rebar cutting blades;
4. Speed-Valve improves productivity and protects the hydraulic system from pressure peaks;
5. Powerful cylinders develop enormous force which is increased and transferred to the jaws by a unique kinematics.
Technical Specifications
MODEL | STYLE | MAX OPENING | HEIGHT | WIDTH | WEIGHT | WORKING PRESSURE | WORKING FLOW | CUT POWER | CUT POWER | CUT POWER | EXCAVATOR |
UNIT | mm | mm | mm | kg | bar | lpm | kn | kn | kn | ton | |
ZSTE-10 | rotating | 1300 | 2610 | 1635 | 2347 | 280-320 | 150-180 | 893 | 1370 | 3084 | 28-30 |
