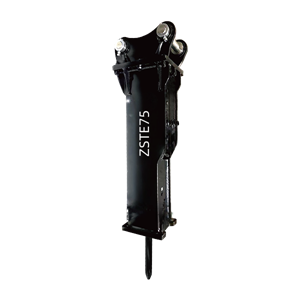

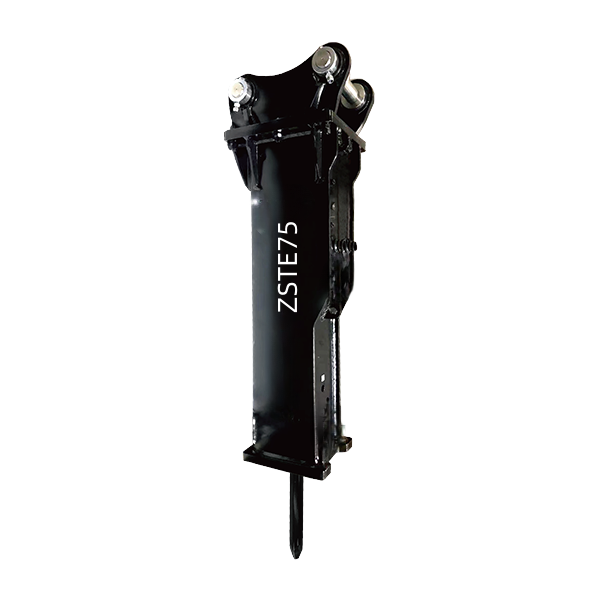

ZSTE-75
Application Fields:
Mining, demolition, construction, steel and other operations
Product Features:
1. Efficient power transfer: Optimum transfer of blow energy into the material and the reduction of the recoil.
2. Wear well working tool: Heat treated and optimal for efficient breaking.
3. Precision assembly: Measure the standard size.
4. Quality parts: Attach importance to the reliability of each part.
Technical Specifications:
| Specification Name | Unit | ZSTE-75 |
| Hydraulic Oil Pressure | kg/cm² | 120-150 |
| psi | 1704-2130 |
| bar | 118-147 |
| Hydraulic Oil Flow | l/min | 50-90 |
| gal/min | 13-24 |
| Strike Frequency | bpm | 400-800 |
| Drill Rod Diameter | mm | 75 |
| inch | 2.95 |
| Suitable Excavator | ton | 6-9 |
| Energy Accumulator |
| not have |
